详细描述
| Type | Working Fluid | Setting Pressure | Working Temperature | Materials | Connection | |
|---|---|---|---|---|---|---|
| Body & Bonnet | Trim | |||||
| Lever | Steam, Air | 0.35~22 | MAX. 250˚C |
Cast Steel FCD450 |
Stainless Steel |
JIS Flanged ANSI Flanged |
| No Lever | Water, Oil | |||||

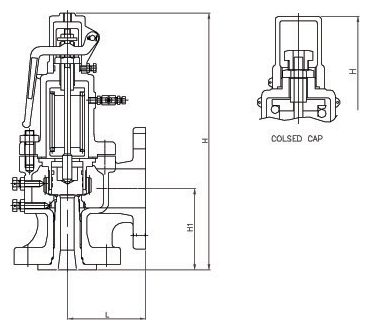

| PART | d | dt | ds | L | H1 | H | LIFT | Inlet | Outlet |
|---|---|---|---|---|---|---|---|---|---|
| SIZE | |||||||||
| 15A X 20A | 15 | 11 | 13 | 95 | 85 | 200 | 2.8 |
JIS 10K RF, JIS 20K RF, Flanged |
JIS 10K FF, Flanged |
| 20A X 40A | 20 | 15 | 18 | 95 | 85 | 200 | 3.8 | ||
| 25A X 50A | 25 | 19 | 22 | 100 | 105 | 220 | 4.8 | ||
| 32A X 65A | 32 | 30 | 35 | 130 | 125 | 310 | 7.5 | ||
| 40A X 65A | 40 | 30 | 35 | 130 | 125 | 310 | 7.5 | ||
| 50A X 80A | 50 | 38 | 44 | 140 | 140 | 340 | 9.5 | ||
| 65A X 80A | 65 | 38 | 44 | 128 | 130 | 450 | 9.5 | ||
| 65A X 100A | 65 | 49 | 57 | 160 | 155 | 450 | 12.3 | ||
| 80A X 125A | 80 | 56 | 66 | 175 | 170 | 510 | 14.0 | ||
| 100A X 150A | 100 | 73 | 86 | 210 | 195 | 580 | 18.3 | ||
| 125A X 200A | 125 | 95 | 114 | 220 | 230 | 907 | 24 | ||
| 150A X 200A | 150 | 115 | 133 | 225 | 230 | 953 | 28.7 | ||
| 200A X 250A | 200 | 150 | 175 | 285 | 280 | 1121 | 37.5 | ||
| 250A X 300A | 250 | 200 | 230 | 400 | 325 | 11720 | 50 |
|
