BST-1S 带旁通疏水阀

详细描述

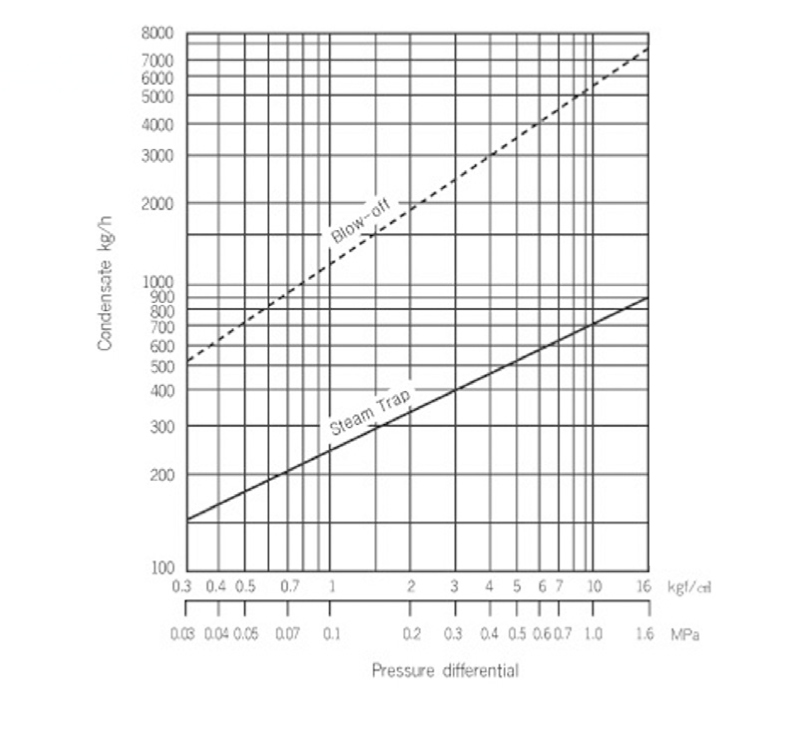

  • A built-in-pass valve allows to easily blow-off larger flow at initial operating and/or admissible flow into trap while opening the valve by handle.
  • This type is useful to steam mains, especially suitable for laundry machines, and dyeing machines.

  • Specifications
    Working Pressure Max. 16kgf/cm2
    Min. 0.35 kgf/cm2
    Working Temperature Max. 220˚C
    Connection PT Screwed
    Materials Body : Ductile lron
    Trim : Stainless Steel

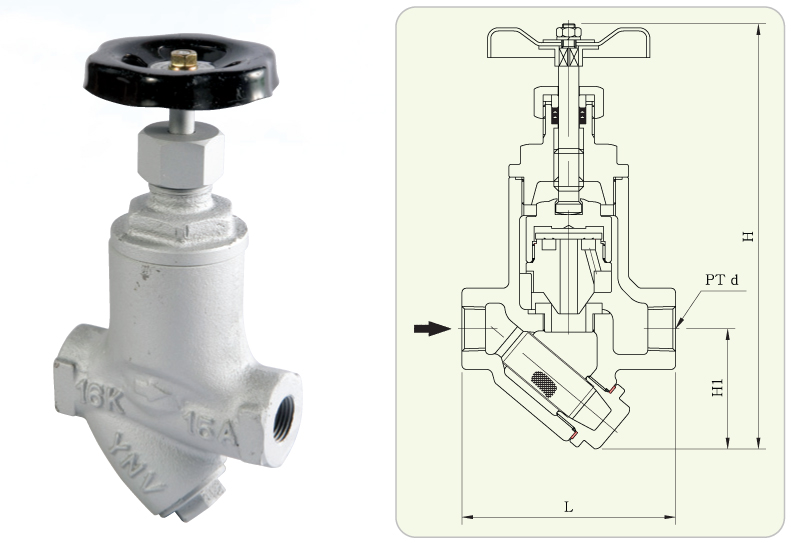

    Dimensions
    Size d L H1 H Connection
    15A PT 1/4″ 100 58 203 PT Screwed
    20A PT 3/8″ 100 58 203
    25A PT 1″ 110 62 207
