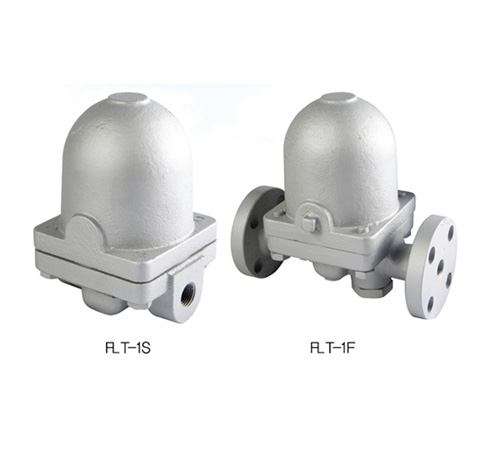

FLT-1S/1F浮球疏水阀

详细描述

  • For Application to larger capacity than thermodynamic trap such as heat exchanger, dryer, chemical plant, and various steam systems. Excellent durability of stainless steel disc, seat, and ball float. Inbuilt air vent assembly to eliminate air-binding.

  • All parts are installed at the bonnet, and the integral bonnet would be helpful for easy maintenance.


Specifications
Working Pressure Max. 4.5, 10, 14kgf/cm2
Min. 0.35 kgf/cm2
Working Temperature Max. 220˚C
Connection FLT-1S : PT Screwed
FLT-1F : JIS Flanged
Materials Body : Ductile lron
Trim : Stainless Steel

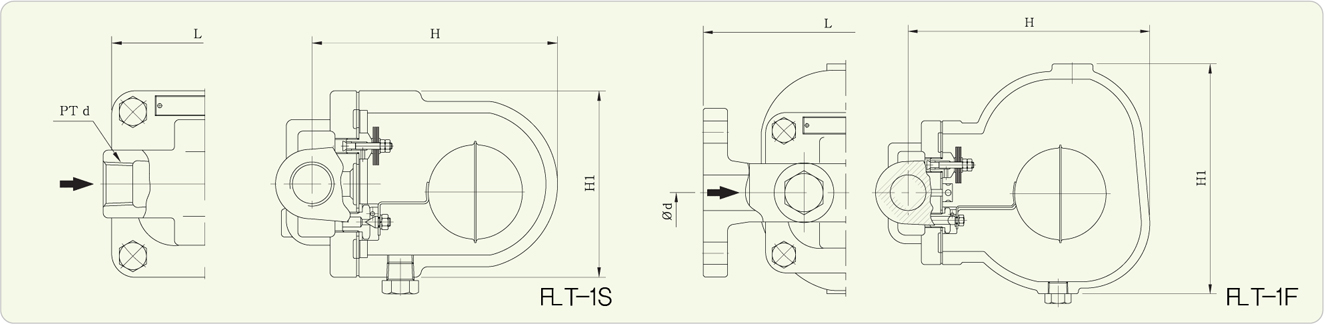

Dimensions
Model Size d L H1 H Connection
FLT-1S 15A PT 1/2″ 120 110 155 PT Screwed
20A PT 3/4″ 120 110 155
25A PT 1″ 120 185 190
32A PT 1 1/4″ 270 240 295
40A PT 1 1/2″ 270 240 295
50A PT 2″ 300 260 310
FLT-1F 15A 15 200 110 170 JIS 10K Flanged
20A 20 200 110 170
25A 25 215 185 190
32A 32 320 240 295
40A 40 320 240 295
50A 50 360 260 310

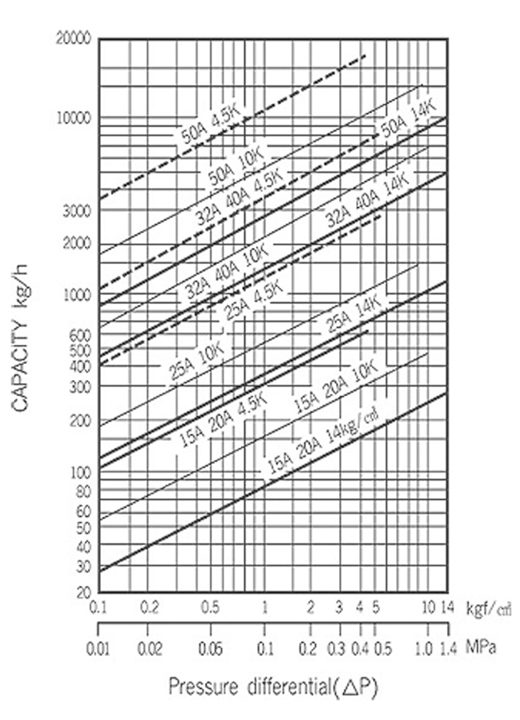

flt-1s1f_03
