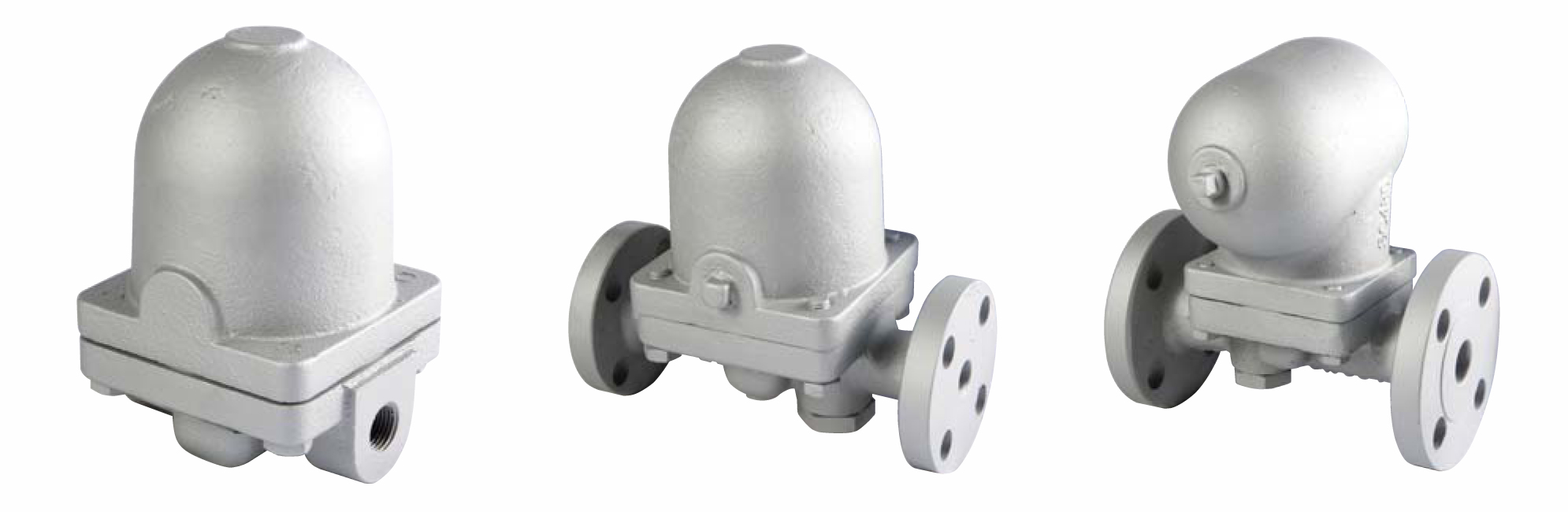

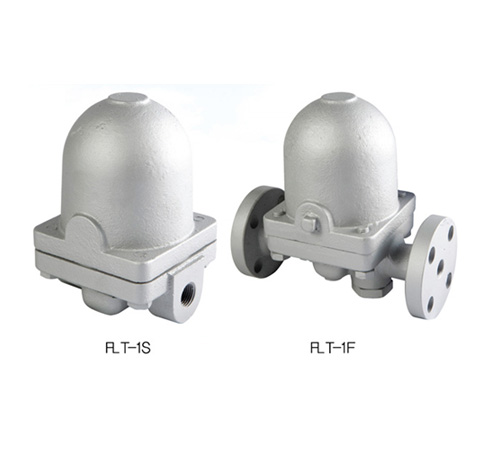

FAT-1S/FAT-1F/3F空气疏水阀泄放阀

详细描述

Specifications
FAT-1S FAT-1F FAT-3F
Working Pressure (kgf/cm2) Max. 10 Max. 10 Max. 30
Working Temperature(˚C) Max. 100 Max. 100 Max. 100
Connection PT Screwed JIS Flanged JIS Flanged
Materials Body : Ductile Iron Body : Ductile Iron Body : Cast Steel
Trim : Stainless Steel Trim : Stainless Steel Trim : Stainless Steel

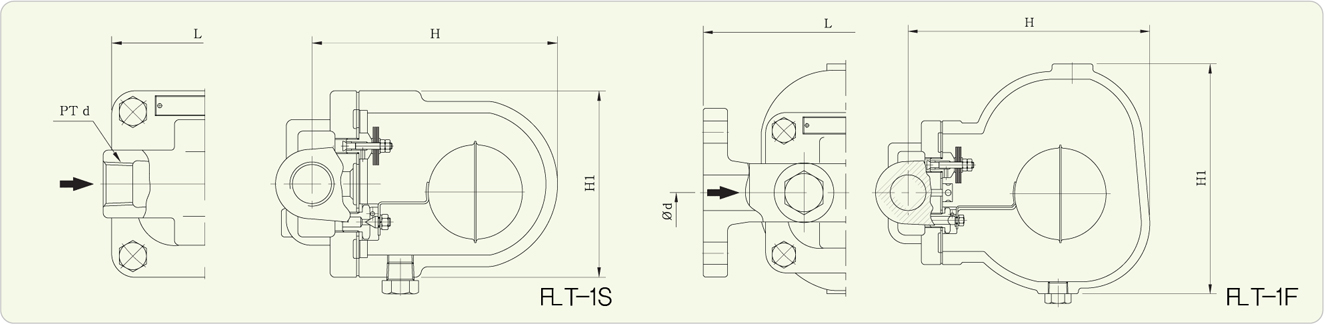

Dimensions
Model Size d L H1 H2 Connection
FAT-1S 15A PT 1/2″ 120 110 170 PT Screwed
20A PT 3/4″ 120 110 170
25A PT 1″ 120 195 220
FAT-1F 15A 15 200 110 170 JIS 10K Flanged
20A 20 200 100 170
25A 25 215 195 220
FAT-3F 15A 15 204 110 170 JIS 30K Flanged
20A 20 204 110 170
25A 25 219 195 220
