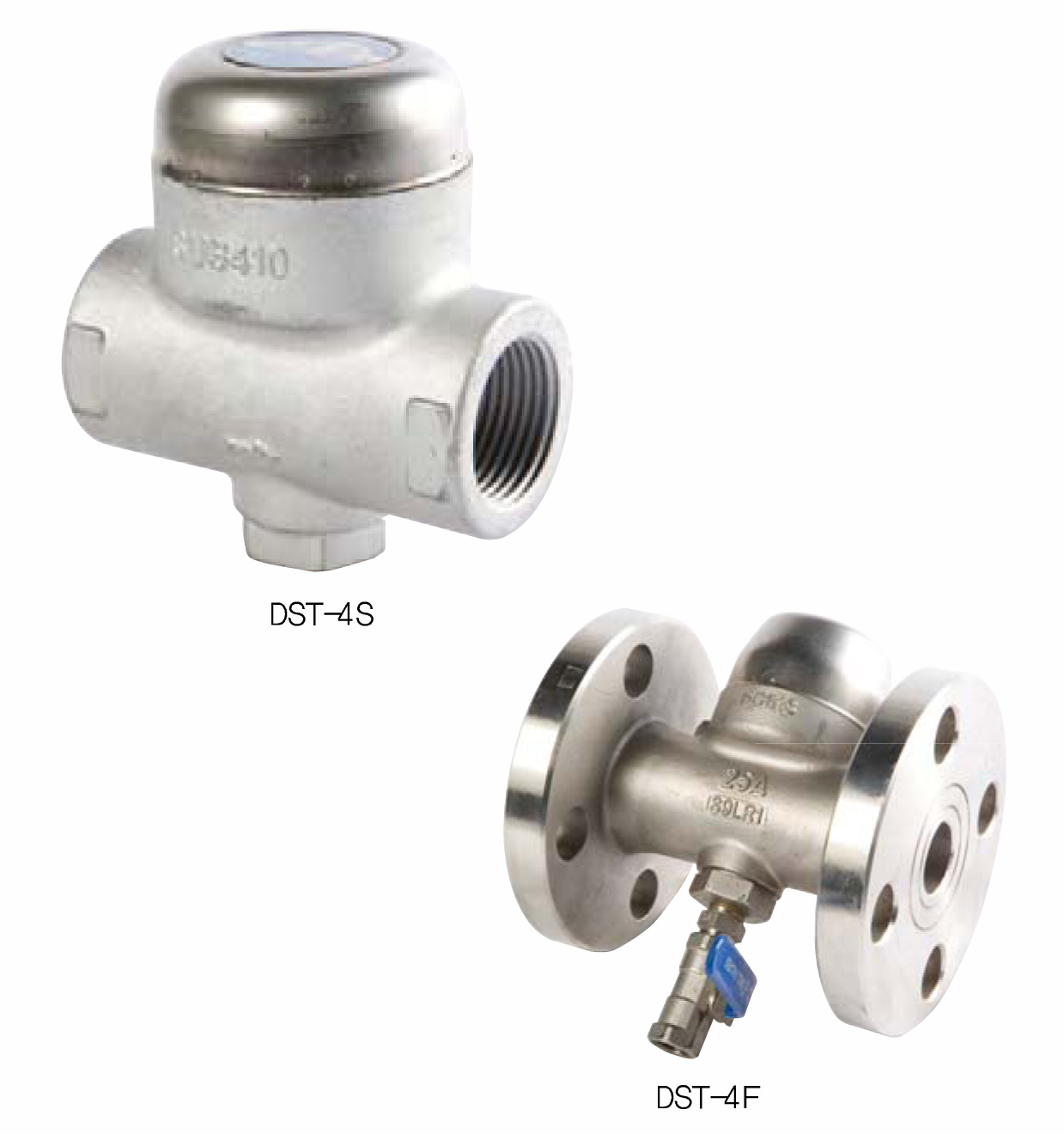

DST-4S/4F 蒸汽疏水阀

详细描述

  • Steam trap is designed for high temperature – pressure steam. And for integral body with the seat.
    – Small and compact design.
    – Easy maintenance and replacement.
    – Internal strainer built-in.

  • – Insulation cap adopted.

  • Specifications
    Working Pressure Max. 20kgf/cm2
    Min. 0.35 kgf/cm2
    Working Temperature Max. 250˚C
    Connection DST-4S : PT Screwed
    DST-4F : JIS 10K, 20K Flanged
    Materials Body : Stainless Steel
    Trim : Stainless Steel

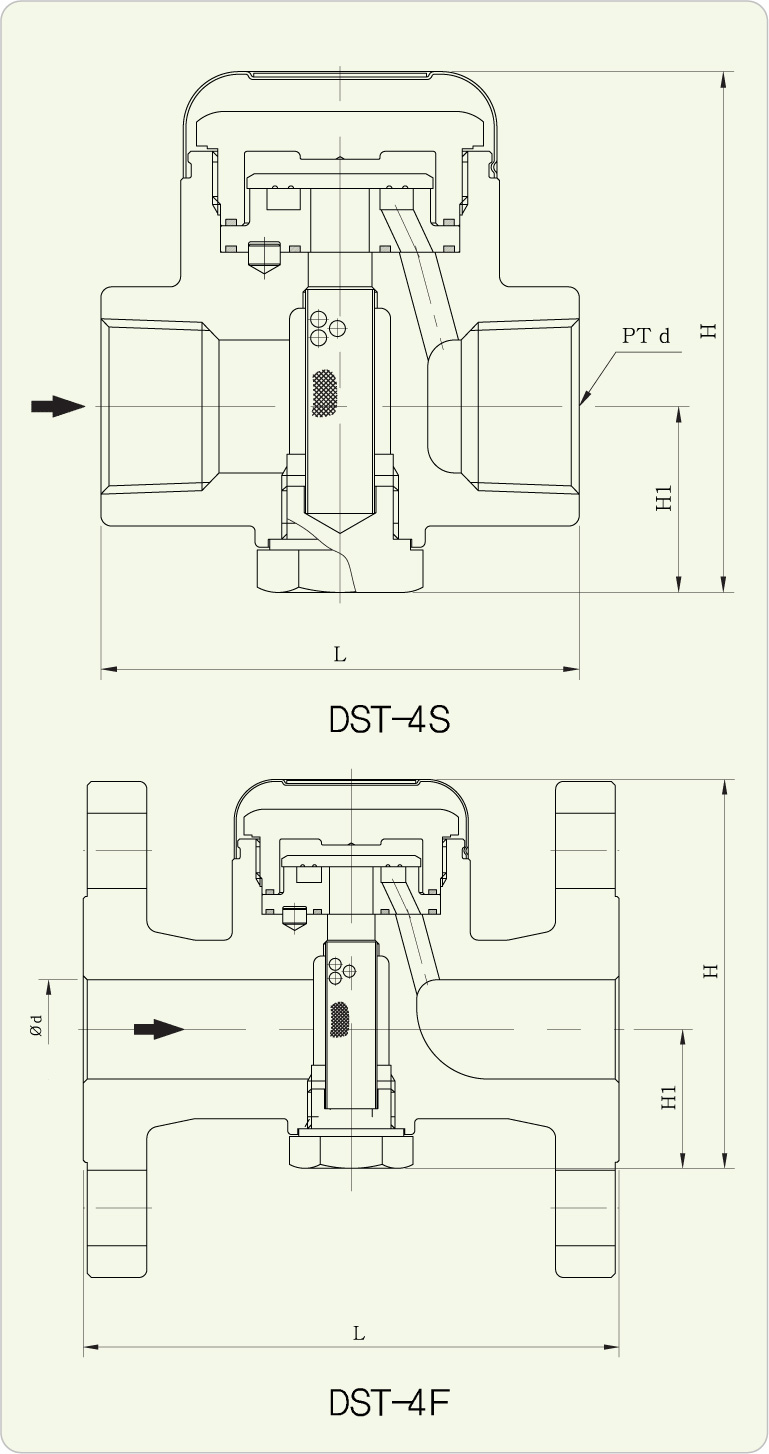

    Dimensions
    Model Size d L H1 H Connection
    DST-4S 15A PT 1/2″ 80 34 90 PT Screwed
    20A PT 3/4″ 80 34 94
    25A PT 1″ 90 34 97
    DST-4F 15A 15 130 35 98 JIS 10K, 20K
    Flanged
    20A 20 130 35 98
    25A 25 135 35 98
    dst-4s4f_02

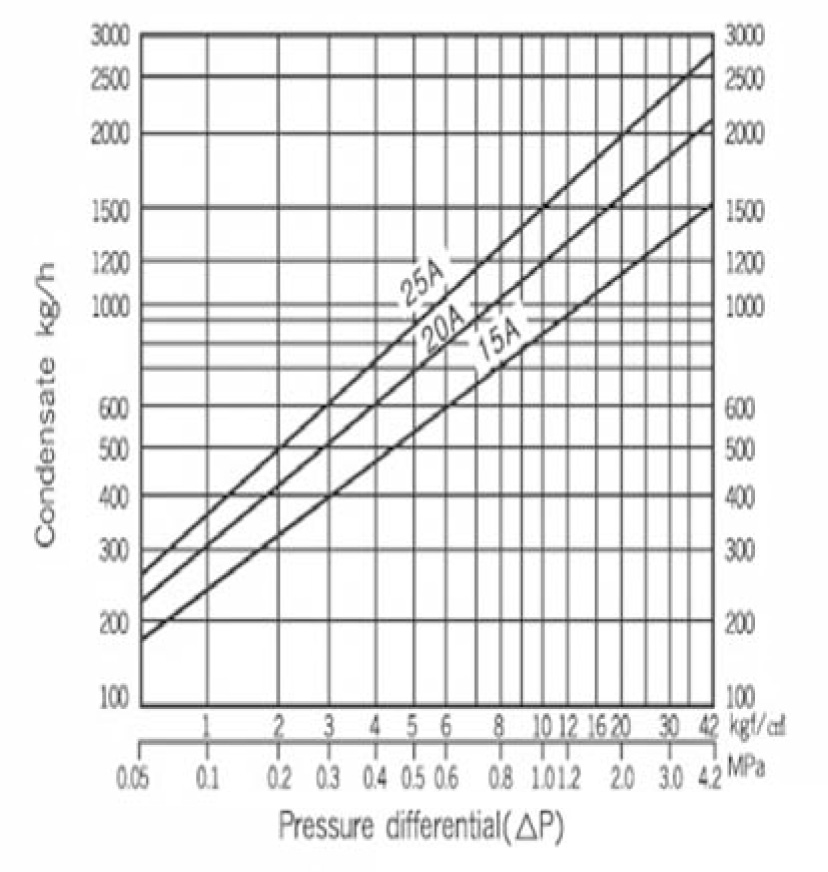

    dst-4s4f_03
